Elevator Machine Room HVAC: Daikin Ductless for Self-Storage in Houston

Why Elevator Machine Rooms Overheat

A storage facility elevator room is a small closed box with a controller and a hydraulic power unit inside. Every trip up and down puts heat into the room and into the oil. In a Houston summer, with no conditioned air nearby, that room cooks. Elevator safety code (ASME A17.1) requires the machine room to stay within the temperature and humidity range the elevator manufacturer specifies. When it doesn’t, the controller faults, the elevator goes out of service, and tenants on the upper floors carry their boxes up the stairs.

What We Installed

• Dedicated Daikin ductless heat pump per room. Inverter compressors that run steady 24/7 instead of cycling hard, with a wall-mounted remote so the manager can check the setpoint.

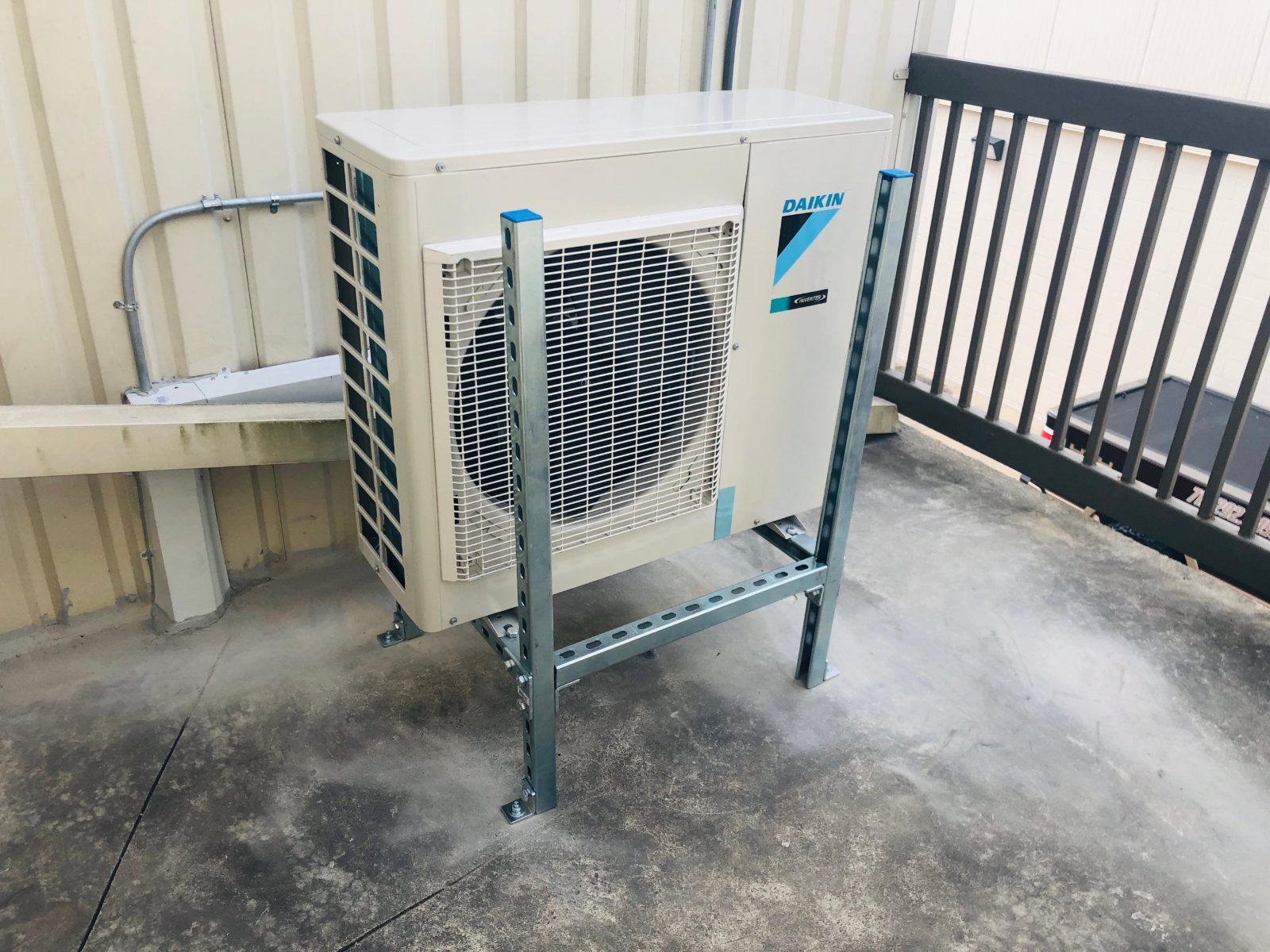

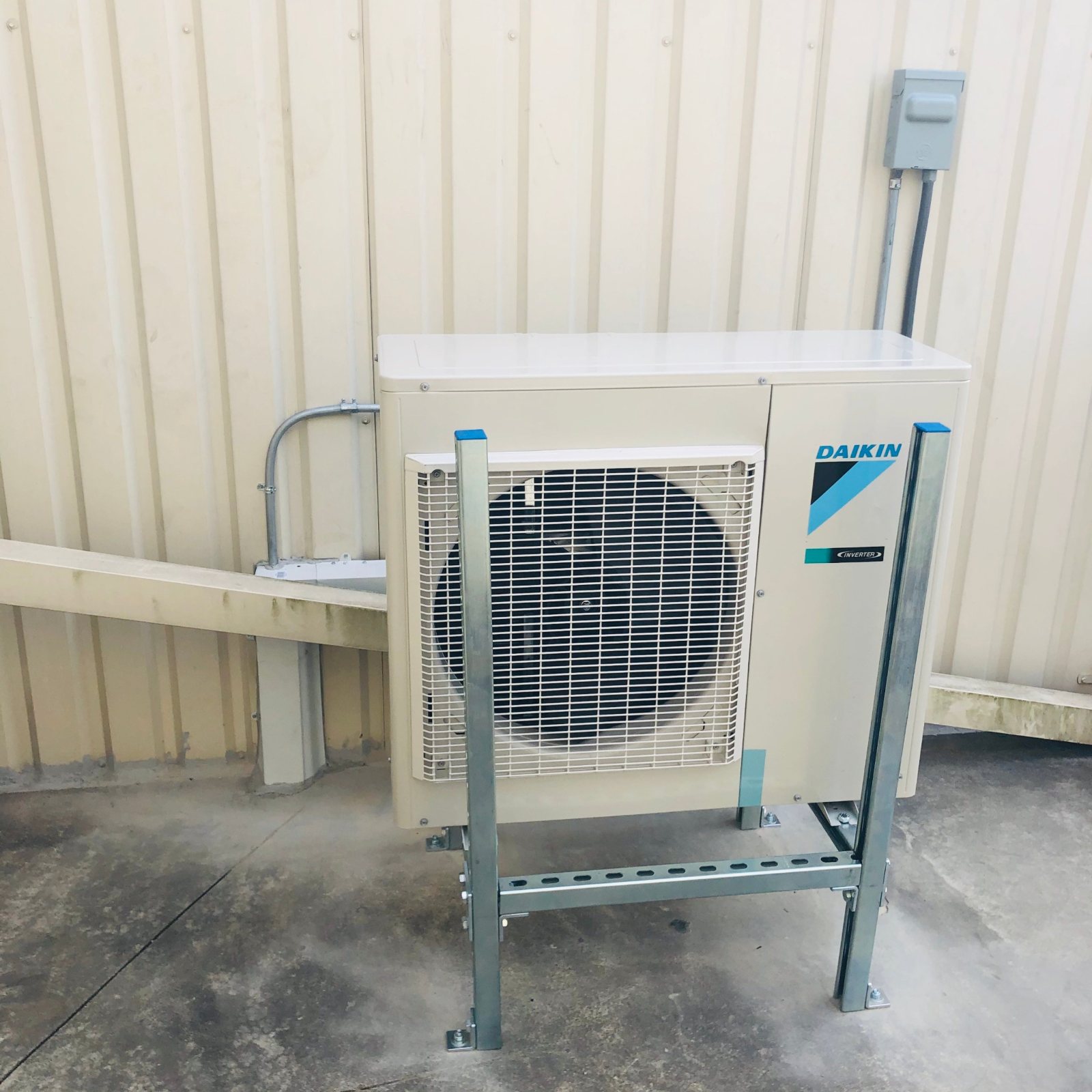

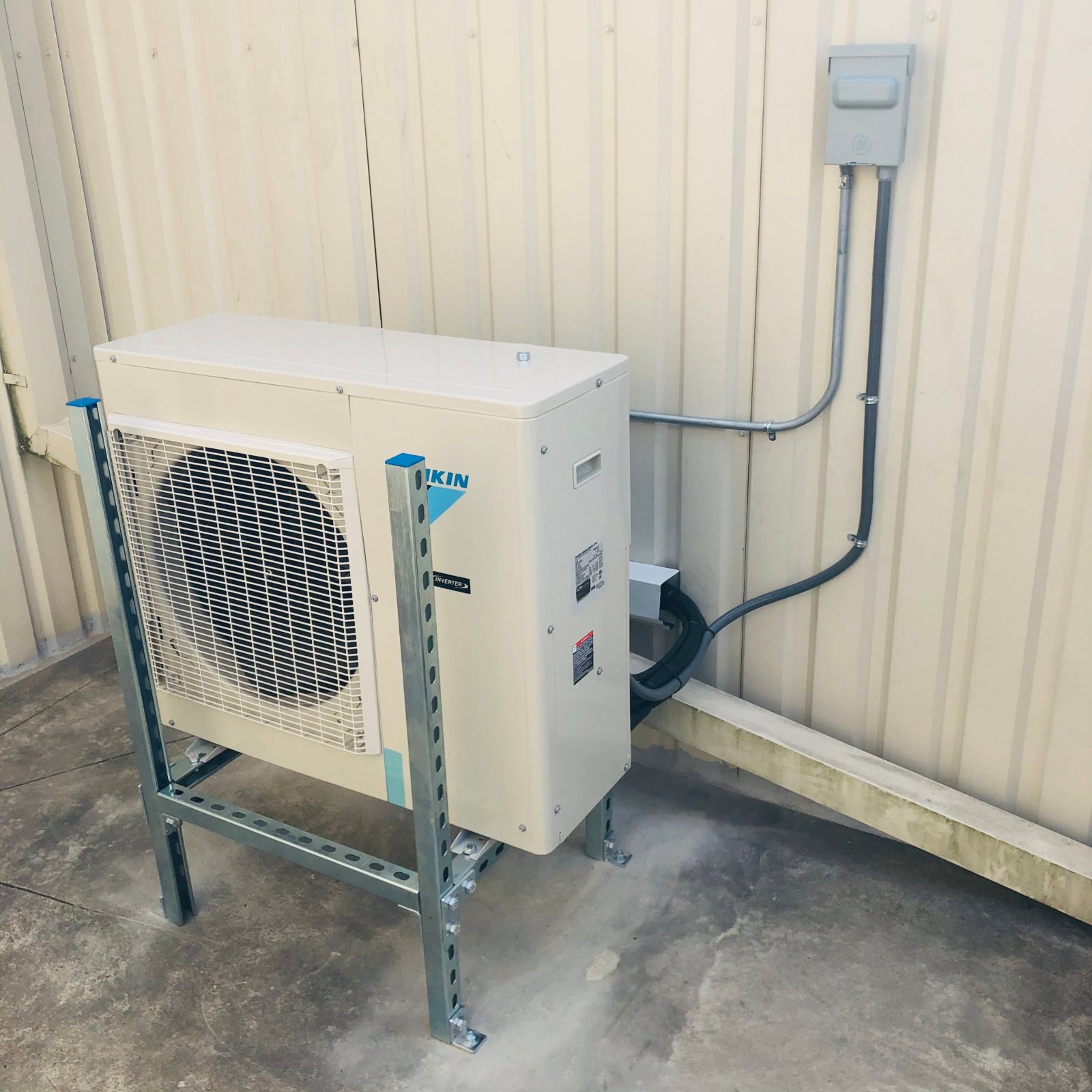

• Galvanized Unistrut stands. Bolted frames with capped ends that lift each condenser off wet slabs and give service clearance on every side.

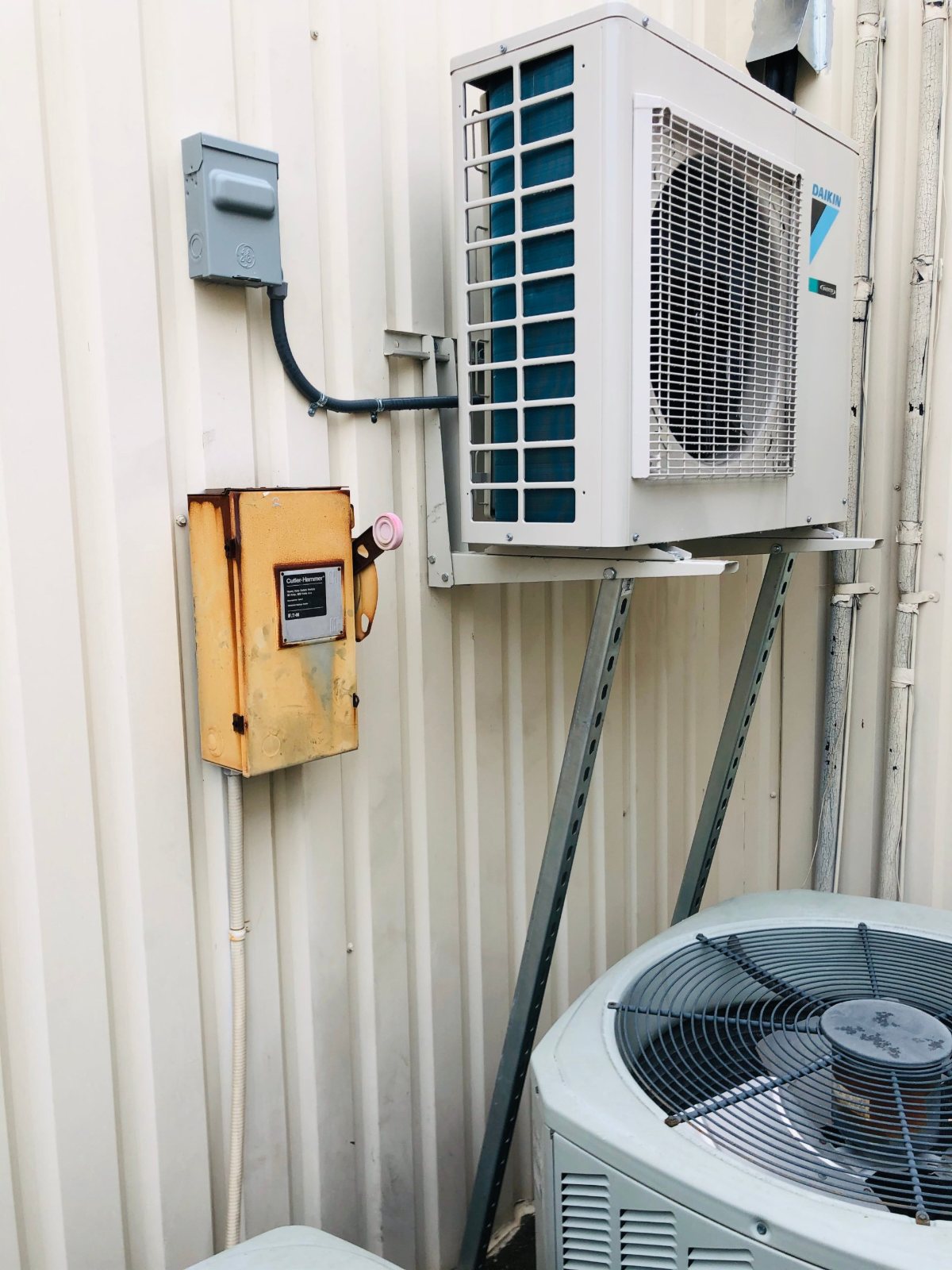

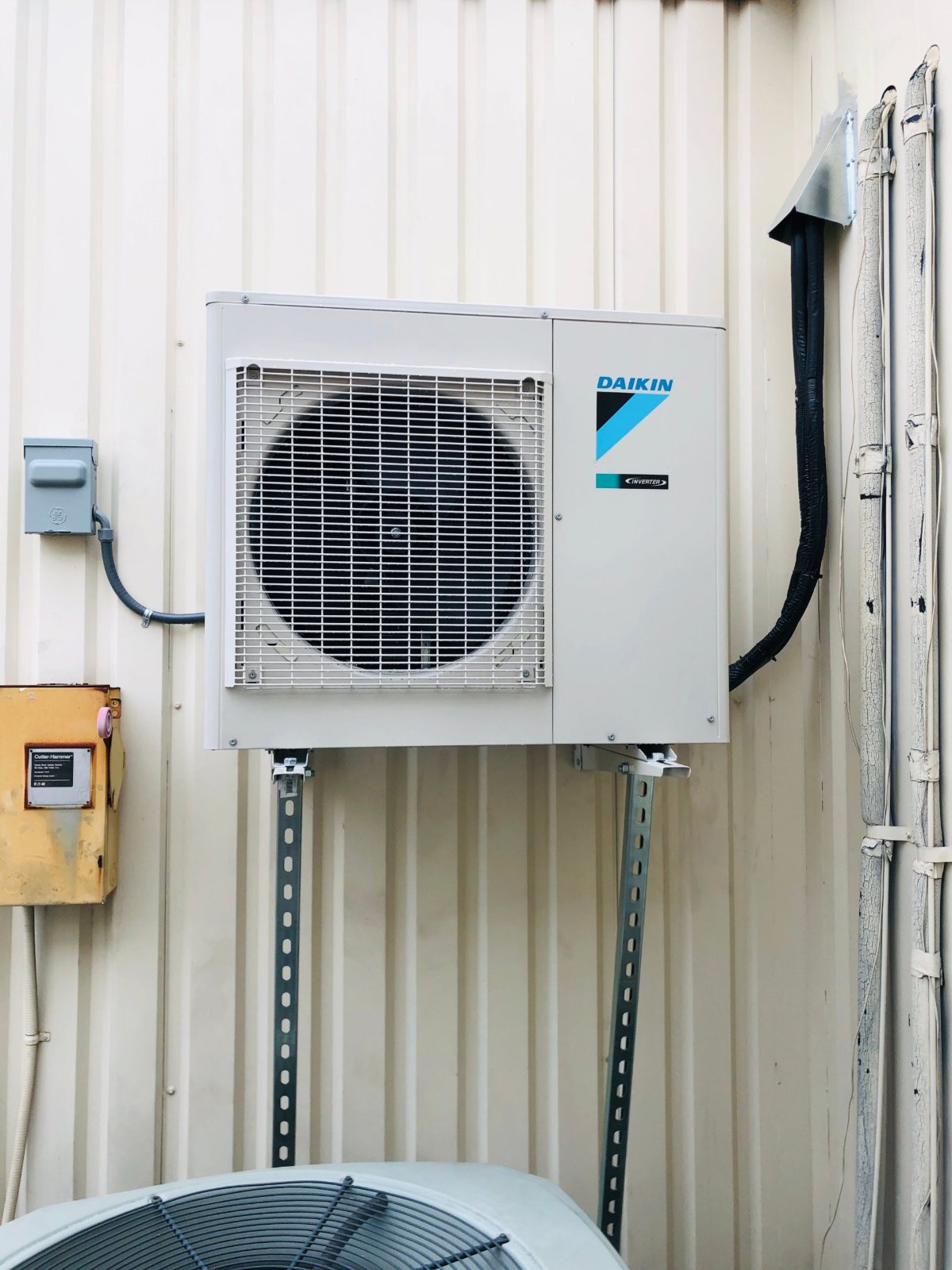

• Wall mounts where floor space was tight. Unistrut supports on the building wall, above existing condensers, so nothing had to be moved.

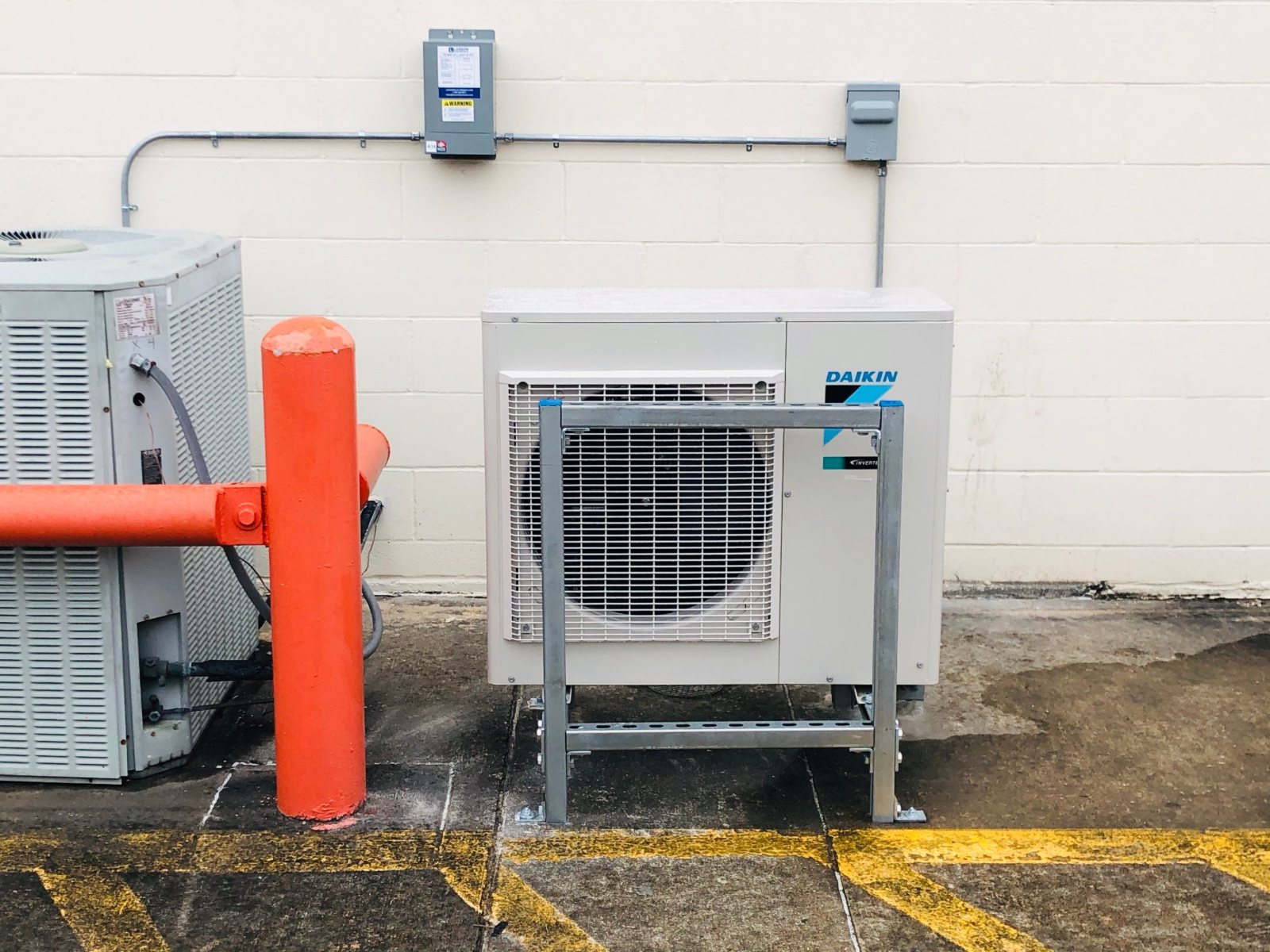

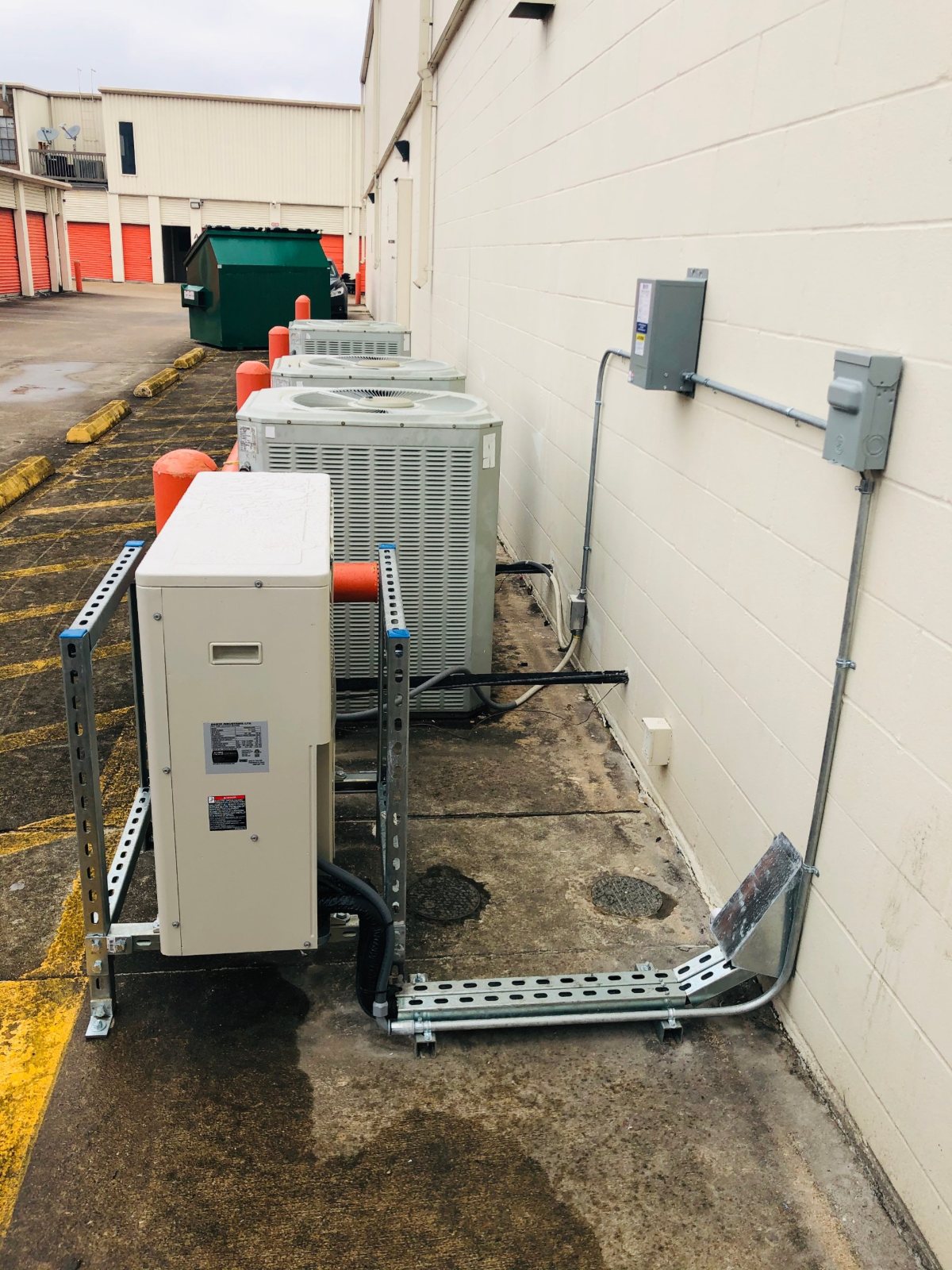

• Guard frames next to the drive aisle. Where trucks and moving vans pass, the stand doubles as a guard alongside the existing bollards.
• Rooftop rails, no roof penetrations. Where condensers went on the roof, a Unistrut rail on rubber roof supports carries them, so nothing punctures the membrane.

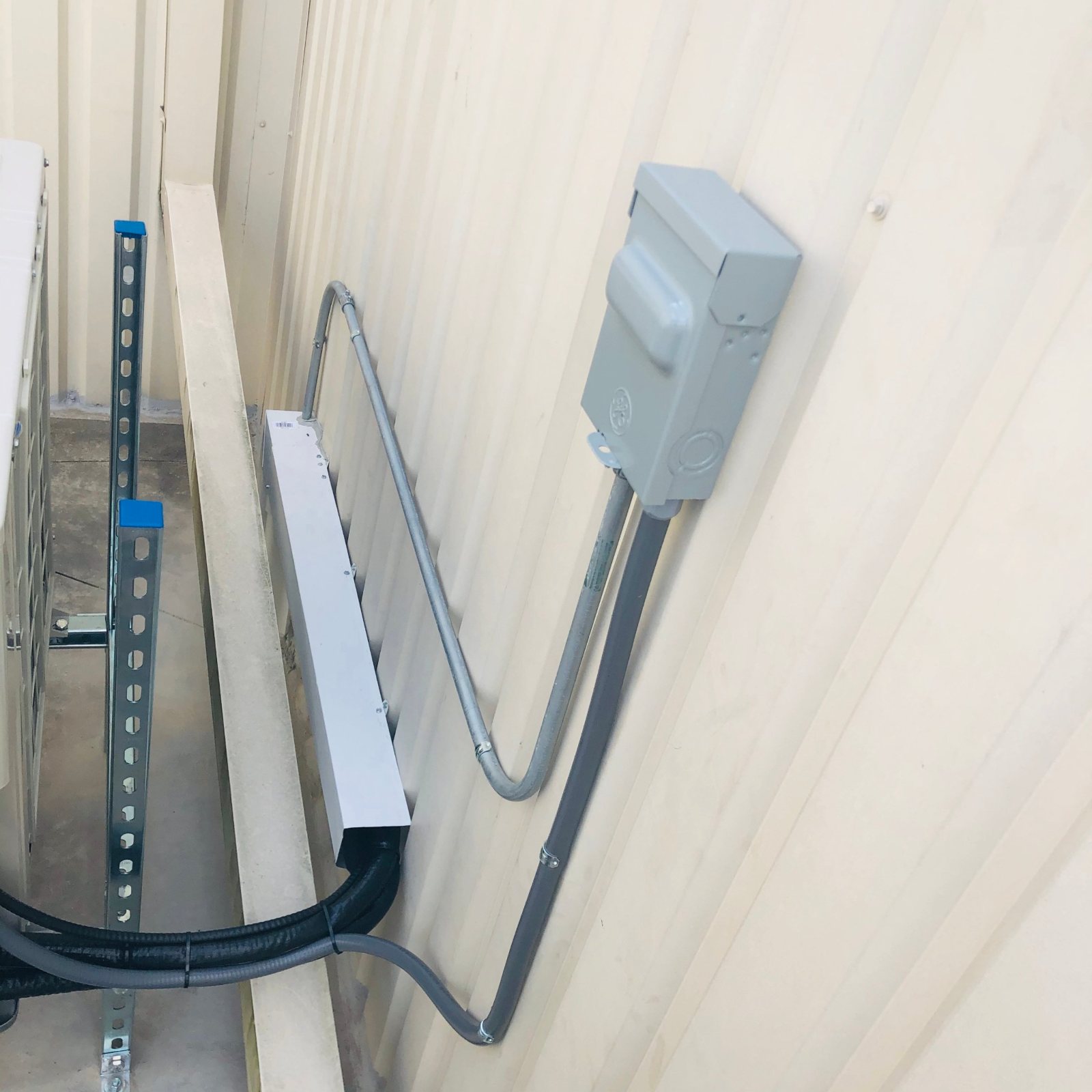

• Clean electrical and line sets. A dedicated disconnect for each unit, EMT conduit and liquid-tight whips, and line set covers from the wall to the condenser.

Project Photos

Same Program: Climate-Controlled Building Air Handlers

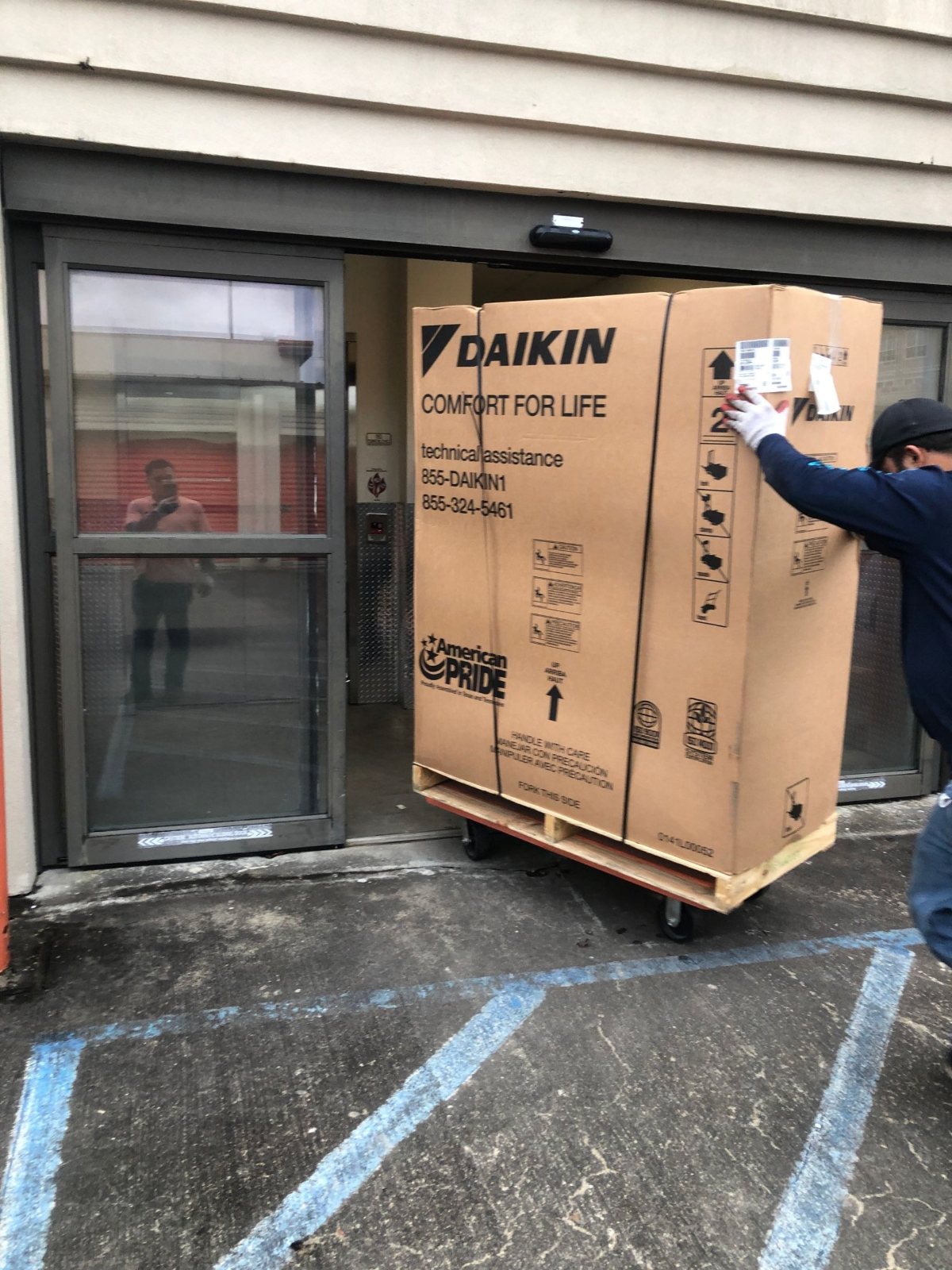

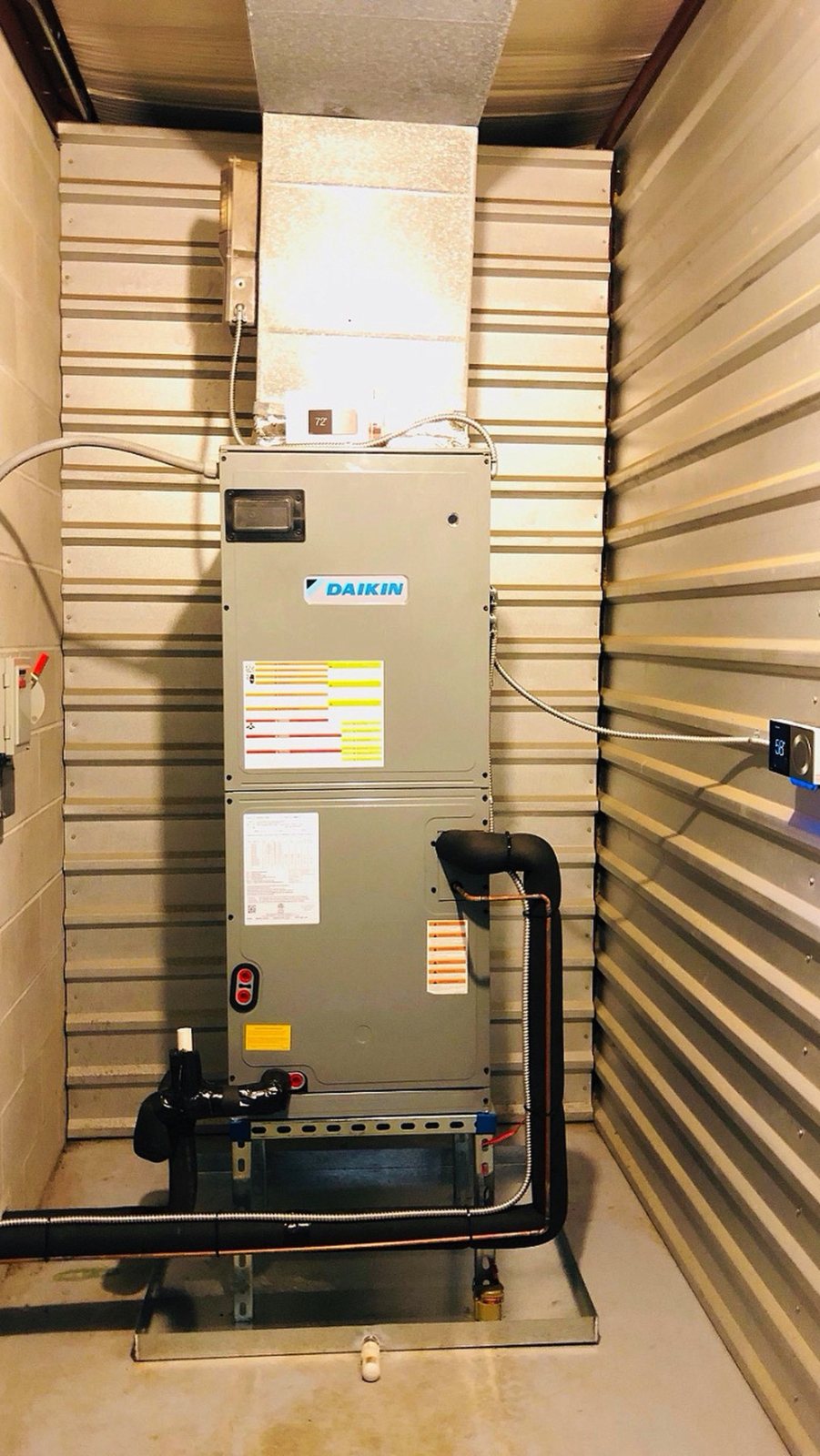

The elevator rooms were one piece. Inside the climate-controlled buildings, we set new Daikin vertical air handlers in the mechanical closets, built to the same standard:

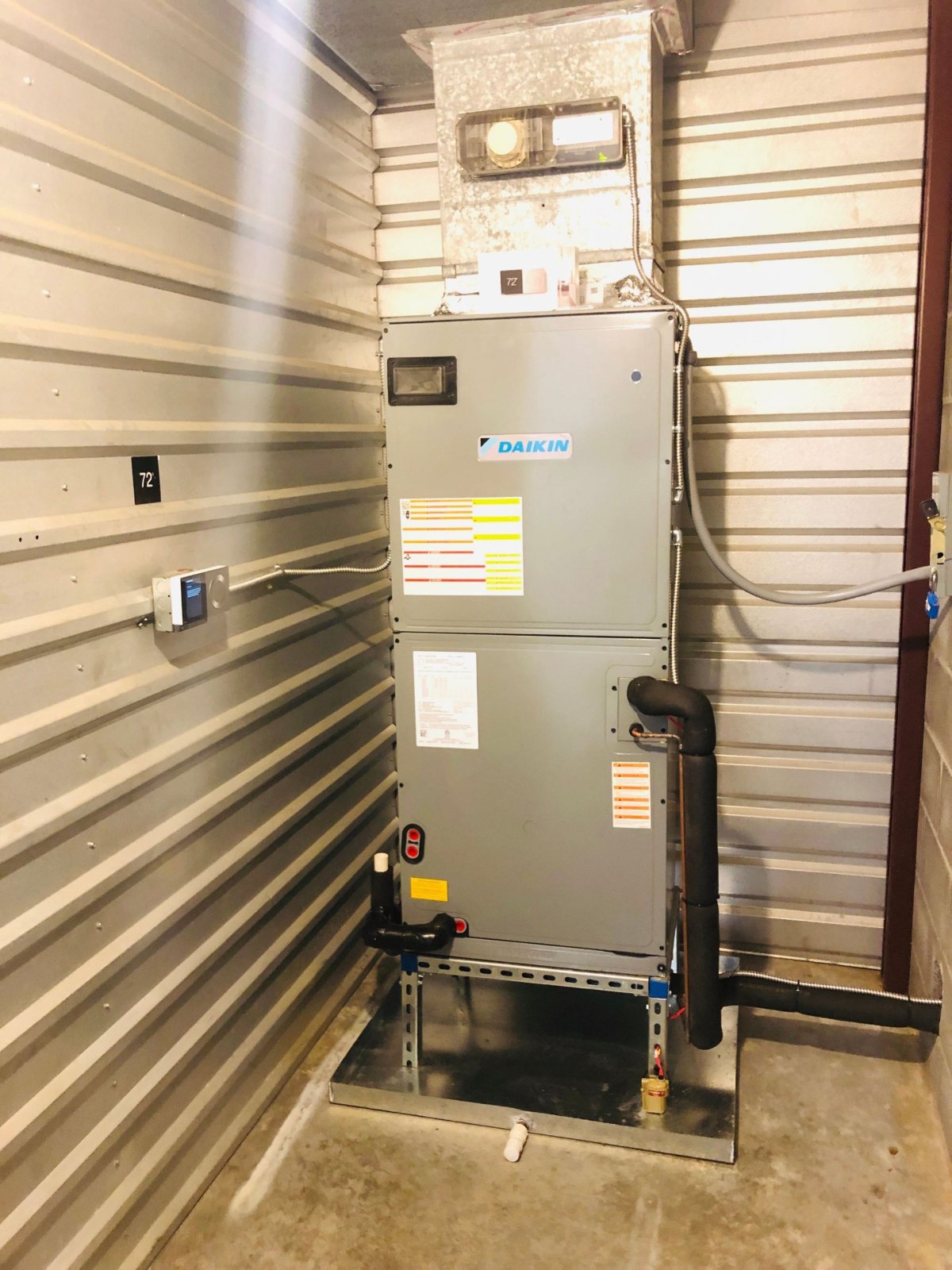

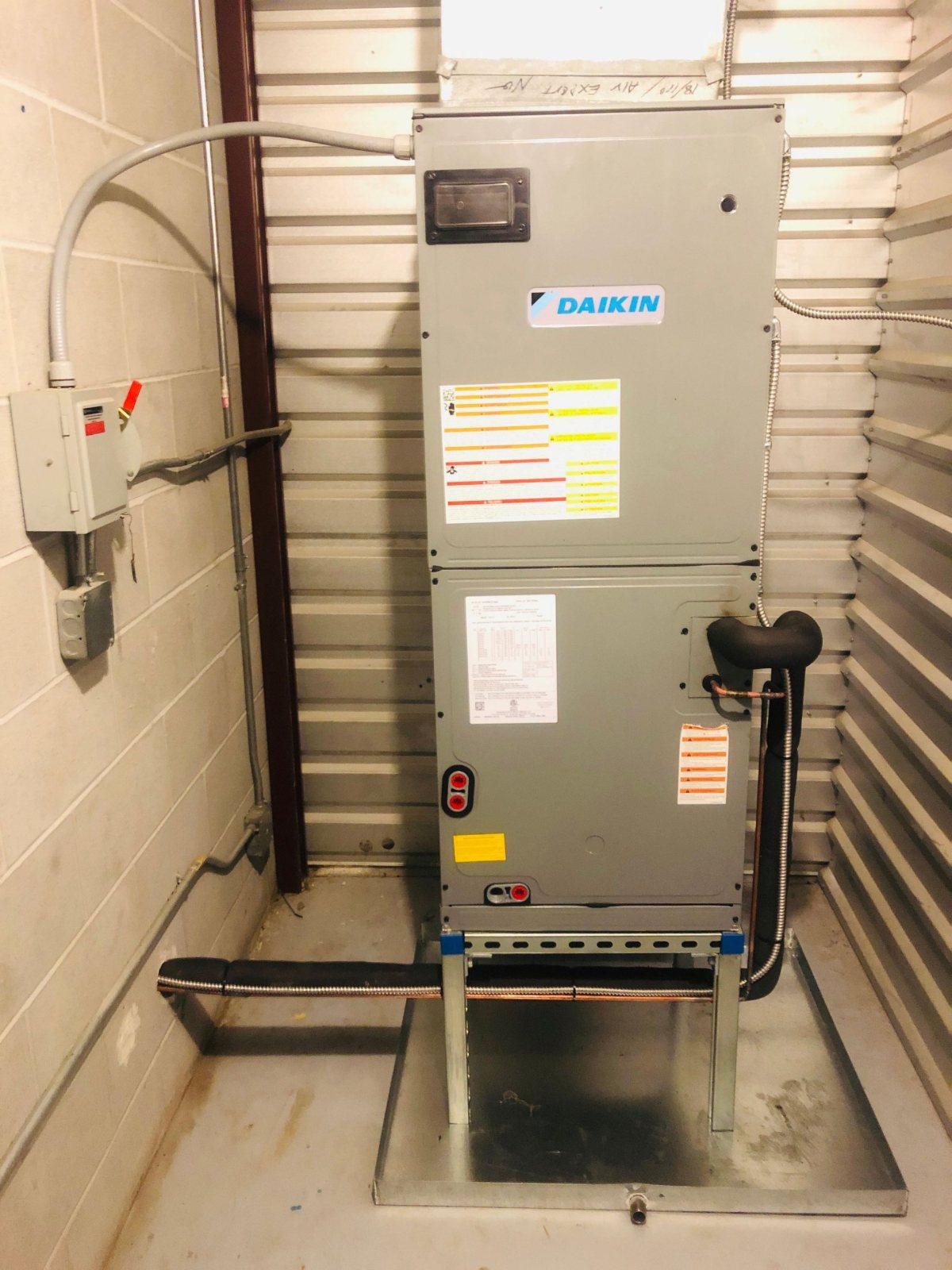

• Raised on Unistrut stands over a galvanized secondary drain pan, so a clogged drain never reaches a tenant’s unit.
• Float switch in the pan that shuts the system down before it can overflow.
• Duct smoke detector on the supply plenum, tied into the unit.
• Insulated line sets, flex conduit, and a dedicated disconnect at every air handler, plus a wall thermostat for the manager.

Built for Storage Owners and Property Managers

Storage operators need equipment rooms that never become a tenant complaint. We install to one standard across every facility, document each unit, and service on a schedule so the elevator never goes down for heat. See our storage facility HVAC program, or our fuel station data hut project for another equipment room we cool.

Elevator Room HVAC Questions

Why does an elevator machine room need its own AC?

The controller and the hydraulic power unit give off heat in a small, closed room. Elevator safety code (ASME A17.1) requires the machine room to stay within the temperature and humidity range the elevator manufacturer specifies. Too hot and the controller faults, the oil overheats, and the elevator goes out of service.

Why a ductless mini-split instead of tying into the building system?

Self-storage buildings rarely have central air near the elevator. A ductless heat pump runs on its own schedule, 24/7, needs only one small wall penetration, and keeps cooling even when the rest of the building is unconditioned.

Why mount the condensers on Unistrut stands?

Stands keep the outdoor unit off wet slabs and out of standing water, give service clearance, and let us build a guard frame where trucks and moving vans pass. Wall mounts on Unistrut supports save floor space in tight alleys.

Do you work on multiple facilities for one owner?

Yes. Multi-site programs are a core part of our storage facility work, with the same install standard and documentation at every location.

Where do you service storage facilities?

North Texas and the greater DFW area, plus Houston and larger commercial programs across Texas.
